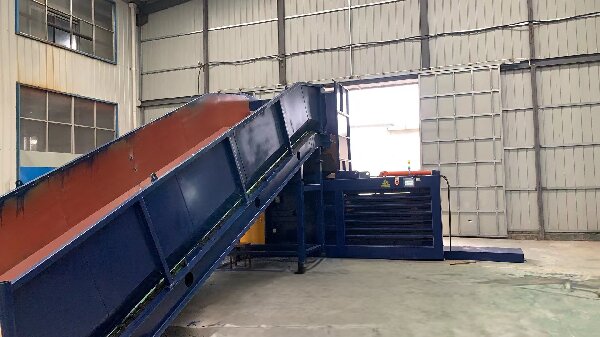

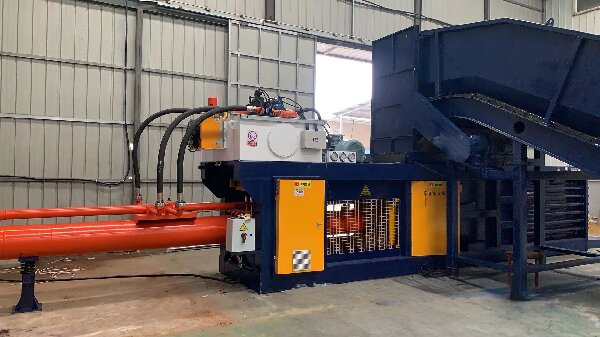

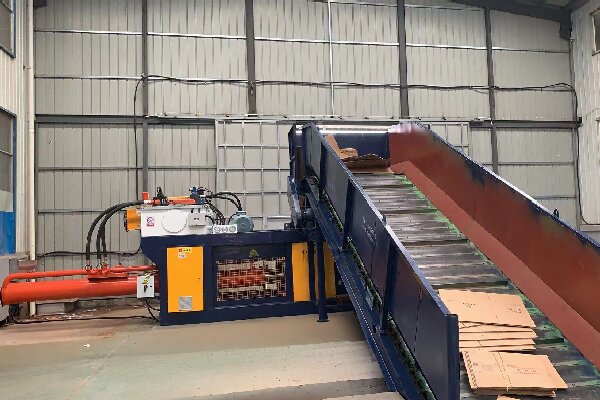

NKW125Q Semi-Automatic Horizontal Hydraulic Baler
The NKW125Q semi-automatic variant offers the same robust 125-ton compression force and durable carbon steel structure as the fully automatic model, but with manual feeding and simpler controls. Ideal for operations that require high-density baling without the need for full automation, this baler is suited for industries like food, pharmaceuticals, packaging, and recycling where budget efficiency and reliability are key.
Key Selling Points
- Cost-Effective Solution: Semi-automatic operation reduces initial investment while maintaining high performance.
- Powerful Compression: 125-ton main cylinder force ensures dense bales, optimizing storage and transport.
- Durable Construction: Carbon steel frame withstands heavy use and industrial environments.
- Flexible Operation: Manual feeding allows handling of varied material types and sizes.
- Simplified Maintenance: Fewer automated components mean easier troubleshooting and lower maintenance costs.
Technical Specifications
| Model | NKW125Q (Semi-Automatic) |
| Bale Size (W×H×L) | 1100×1100×1600 mm |
| Material Density | 500–600 kg/m³ |
| Feed Opening Size | 2000×1100 mm |
| Main Motor Power | 37.5 kW + 11 kW |
| Capacity | 10–12 tons/hour (depending on feed rate) |
| Main Cylinder Force | 125 tons |
| Mainframe Weight | 22 tons |
| Mainframe Size (L×W×H) | 11×2.3×2.9 m |
| Working Pressure | 21 MPa |
Models and Options
Available in manual feed configuration; optional conveyor can be added for semi-automated feeding.
Materials and Structure
Constructed with heavy-duty carbon steel for structural integrity, the machine is designed for low maintenance and long-term reliability.
Applications
Primarily used in recycling facilities, waste treatment plants, and manufacturing units that handle paper, plastic, metal, and other compressible materials.
Customization
Options include additional safety guards, custom PLC programs for semi-automated cycles, and integrated weighing systems.
FAQ
What is the difference between semi-automatic and fully automatic?
Semi-automatic requires manual loading and cycle initiation, while fully automatic uses PLC-controlled continuous operation.
What is the bale density?
Bale density ranges from 500 to 600 kg/m³, similar to the fully automatic model.
Can I add a conveyor later?
Yes, a conveyor can be retrofitted to convert to a semi-automatic feeding system.
What are the power requirements?
Main motor power is 37.5 kW + 11 kW; three-phase electricity is required.
Is CE certification available?
Yes, the machine meets CE standards, including EN ISO 12100:2010 and EN 60204-1:2018.
What is the delivery method?
FOB or CIF, with pre-shipment testing available.
Inquiry Information
Contact us for more details:
Email: Sales@nkbaler.com
Phone/WhatsApp: +86 15021631102
Image Gallery
