160T Fully Automatic Horizontal Hydraulic Baler for Waste Paper and Cardboard

Quantity:
SKU: 9457571002
Model: NKW160Q

{{ variable.name }}

{{ value.name }}
Product Details

160T Fully Automatic Horizontal Hydraulic Baler

The NKW160Q fully automatic horizontal hydraulic baler delivers 160 tons of pressing force with a throughput of 12-15 tons per hour. Designed for continuous operation in recycling, packaging, and waste management, it compresses materials into dense bales of 1100mm(W) x 1250mm(H) x ~1600mm(L), reducing storage and transport costs.

Key Selling Points

  • Powerful Compression: 160-ton main cylinder force ensures high-density bales (400-600 kg/m³), improving logistics efficiency.
  • High Throughput: Processes 12-15 t/h, suitable for large-scale industrial operations.
  • Dual Motor System: 45kW+11kW motors deliver reliable performance with lower energy consumption per ton.
  • PLC Controlled: Fully automatic cycle with PLC for consistent output and minimal manual intervention.
  • CE Certified: Conforms to EN ISO 12100:2010 and EN 60204-1:2018, ensuring safety and compliance for EU markets.

Technical Specifications

ModelNKW160Q
Bale Size (W x H x L)1100mm x 1250mm x ~1600mm
Material Density400-600 kg/m³
Feed Opening2000mm x 1100mm
Main Motor Power45kW + 11kW
Capacity12-15 tons/hour
Main Cylinder Force160 tons
Mainframe Weight28 tons
Mainframe Dimensions (L x W x H)~11m x 2.3m x 2.9m
Conveyor Weight~5 tons
Conveyor Size2000 x 14000 mm
Conveyor Motor7.5kW
Working Pressure25 MPa

Models and Options

Available as fully automatic horizontal baler. Feeds via conveyor belt or manual loading. Optional configurations for different material types.

Materials and Structure

Constructed from carbon steel for robustness. The hydraulic system operates at 25 MPa, ensuring consistent baling performance.

Applications

Suitable for food, pharmaceuticals, packaging, chemicals, electronics, metals, waste treatment, and recycling industries. Ideal for compacting waste paper, cardboard, plastics, and other recyclables.

Customization

Customizable options including feed conveyor length, bale size, and automation level to meet specific requirements.

FAQ

What is the bale density?

The bale density is 400-600 kg/m³, depending on material.

What is the minimum order quantity?

MOQ is 1 unit.

What are the payment terms?

Payment terms are 40% deposit, 60% before shipment.

How is the machine tested?

Pre-shipment testing is performed.

What is the delivery method?

FOB/CIF available.

Does it comply with EU safety standards?

Yes, it conforms to EN ISO 12100:2010 and EN 60204-1:2018, with CE certification.

Inquiry Information

Contact Nick at Sales@nkbaler.com or WhatsApp +86 15021631102 for more details and a quote.

Images

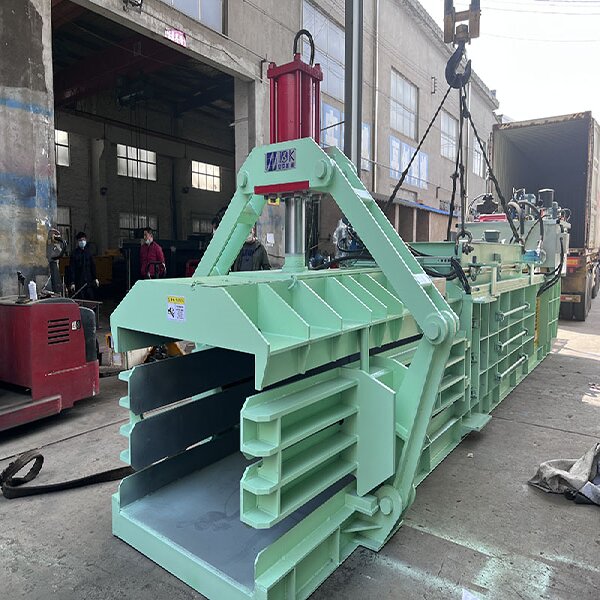

160T fully automatic horizontal hydraulic baler front view 160T fully automatic horizontal hydraulic baler side view 160T fully automatic horizontal baler in operation 160T fully automatic horizontal baler with conveyor
