The NKW200Q is a fully automatic horizontal hydraulic baler capable of processing 12-15 tons of material per hour. Its 200-ton main cylinder force and 30.5MPa working pressure ensure dense, consistent bales. Designed for continuous automatic operation with PLC-controlled cycles, it meets the demands of 24/7 industrial duty. This baler is ideal for recycling and waste treatment facilities seeking high efficiency and reliability.
Key Selling Points
High Capacity: Processes 12-15 tons per hour, enabling efficient handling of large volumes, reducing downtime.
Powerful Compression: 200-ton main cylinder force ensures dense bales (650-700 kg/m³), maximizing transport and storage efficiency.
Continuous 24/7 Operation: Fully automatic with PLC control, designed for continuous heavy-duty industrial use.
Durable Construction: Carbon steel frame adds strength and longevity, suitable for demanding environments.
Compliance and Safety: CE certified to EN ISO 12100:2010 and EN 60204-1:2018, ensuring safe operation in EU and EEA markets.
Technical Specifications
Bale Size
1100mm (W) × 1100mm (H) × ~1800mm (L)
Material Density
650-700 kg/m³
Feed Opening Size
2400mm × 1100mm
Main Motor Power
45KW + 11kW
Capacity
12-15 tons/hour
Main Cylinder Force
200 tons
Working Pressure
30.5 MPa
Mainframe Weight
34 tons
Mainframe Size (L×W×H)
About 11 × 4.3 × 5.8 meters
Conveyor Weight
About 7 tons
Conveyor Size
2000 × 14000 mm
Conveyor Motor
7.5 kW
Models and Options
This fully automatic model is available with an optional conveyor system for integrated material feeding. Standard configuration includes the main baler unit. Customization options include PLC programming for specific cycle requirements and additional safety features.
Materials and Structure
Constructed from high-grade carbon steel, the mainframe is built to withstand continuous operation. The robust structure provides stability and shock absorption, ensuring long service life even under heavy loads.
Applications
Ideal for food, pharmaceuticals, packaging, chemicals, electronics, metals, waste treatment, and recycling industries. Suitable for compressing materials like paper, cardboard, plastic films, bottles, and metal scrap.
Customization
We offer customization to meet specific requirements, including adjustments to feed opening size, bale dimensions, and automation level. Our engineering team can adapt the machine to your site conditions.
FAQ
What is the input material size limit?
The feed opening is 2400mm × 1100mm, so materials should fit within these dimensions for efficient feeding.
Can it handle wet or corrosive materials?
While the machine is built with carbon steel, for corrosive materials additional protective coatings can be applied. Please contact us for specific requirements.
What is the power consumption?
The main motor is 45kW and the conveyor motor is 7.5kW, but total consumption depends on operation cycles.
Does it require special foundation?
Yes, due to the machine weight of 34 tons, a reinforced concrete foundation is recommended. We can provide installation guidelines.
What is the delivery time?
Please contact us for current lead times, as it varies based on production schedule.
Can we get a pre-shipment test?
Yes, we offer pre-shipment inspection and testing to ensure the machine meets your expectations.
Do you provide installation and training?
We can arrange on-site installation supervision and operator training as part of the service package.
Inquiry Information
When sending an inquiry, please provide the following details: material type, required capacity, available floor space, and operation hours. This helps us recommend the best configuration for your needs.

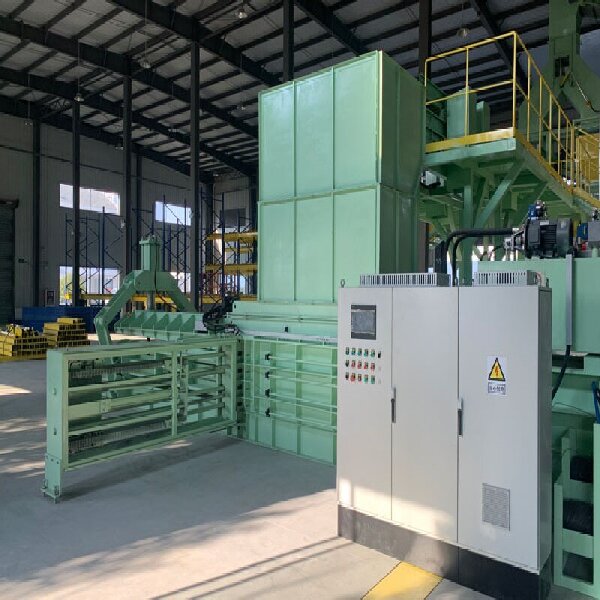

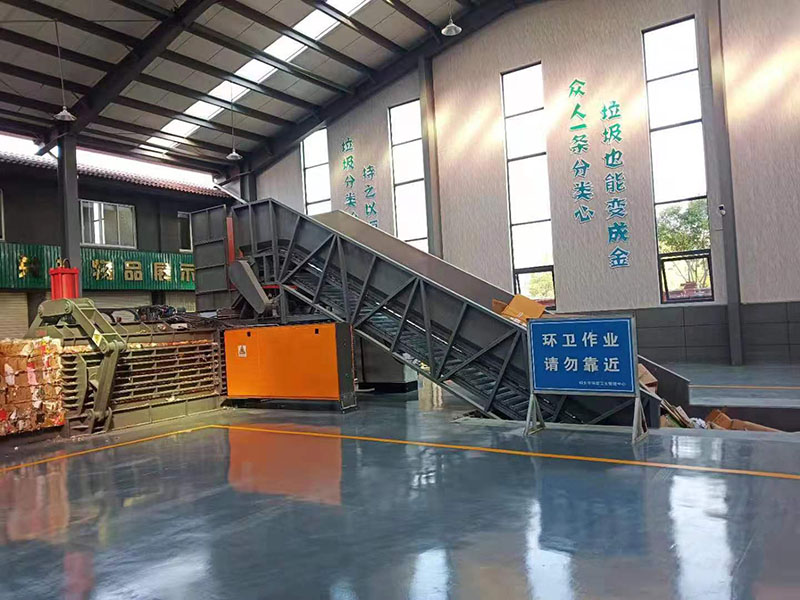

Front viewSide viewIn operation with conveyorControl panel
