60 Ton Hydraulic Vertical Baler NK60LT for Textile and Clothes
The NK60LT vertical baler is a 60-ton hydraulic press designed for efficient baling of textile and clothes. Producing compact bales of 150-200 kg at a rate of 10-12 bales per hour, it is an ideal solution for recycling centers, textile mills, and waste management operations. The machine features cross packing with steel straps, a 25 MPa system pressure, and a compact footprint, making it suitable for facilities with limited space.
Key Selling Points
- High Press Force: 60-ton hydraulic power produces dense bales, reducing storage and transport costs.
- Efficient Output: 10-12 bales per hour with a bale weight of 150-200 kg, increasing operational productivity.
- Customizable Voltage: Available in 380V/50HZ or other configurations to match local power supply.
- Certified Safety: CE-certified with compliance to EN ISO 12100:2010 and EN 60204-1:2018, ensuring operational safety.
- Durable Construction: Built with carbon steel for long-lasting performance in demanding environments.
Technical Specifications
| Parameter | Value |
|---|
| Model | NK60LT |
| Hydraulic Power | 60 Ton |
| Packaging Size (L*W*H) | 1000*700*400-800 mm |
| Feed Opening Size (L*H) | 1000*460 mm |
| Chamber Size (L*W*H) | 1000*700*1250 mm |
| Bale Weight | 150-200 Kg |
| Capacity | 10-12 bales/H |
| System Pressure | 25 MPa |
| Packing Materials | Cross packing |
| Packing Way | Front-Back 4 pcs / Left-Right 2 pcs |
| Voltage (customizable) | 380V/50HZ |
| Power | 15KW/20HP |
| Machine Size (L*W*H) | 1700*1000*3780 mm |
| Weight | 2900 Kg |
Models and Options
The NK60LT is available in standard configuration as described. Customization options include voltage (e.g., 380V/50HZ) and packing ways to suit specific operational needs.
Materials and Structure
The baler is constructed from carbon steel, ensuring structural integrity and durability. The hydraulic system is engineered for high performance with a system pressure of 25 MPa.
Applications
This vertical baler is used across industries including food, pharmaceuticals, packaging, chemicals, electronics, metals, waste treatment, and recycling. It is particularly effective for compacting textiles and clothes.
Customization
Voltage can be customized to match local electrical standards. Additional customization may be available upon request; please contact us for details.
FAQ
What is the bale weight and capacity?
The NK60LT produces bales weighing 150-200 kg with a capacity of 10-12 bales per hour.
Can the voltage be adjusted to my country's standard?
Yes, the voltage is customizable. The standard is 380V/50HZ, but other options can be provided.
What materials can be baled with this machine?
It is suitable for textiles, clothes, paper, plastic, and other similar materials.
Is the machine CE certified?
Yes, the machine has an attestation certificate of machinery directive with standards EN ISO 12100:2010 and EN 60204-1:2018.
What is the machine weight and size?
The machine weighs 2900 kg and has dimensions 1700*1000*3780 mm.
How is the bale packing done?
It uses cross packing with front-back and left-right straps (4 pcs and 2 pcs respectively).
Inquiry Information
For pricing and further details, please contact Nick at Sales@nkbaler.com or call +86 15021631102. Visit our website at www.nickbaler.com.

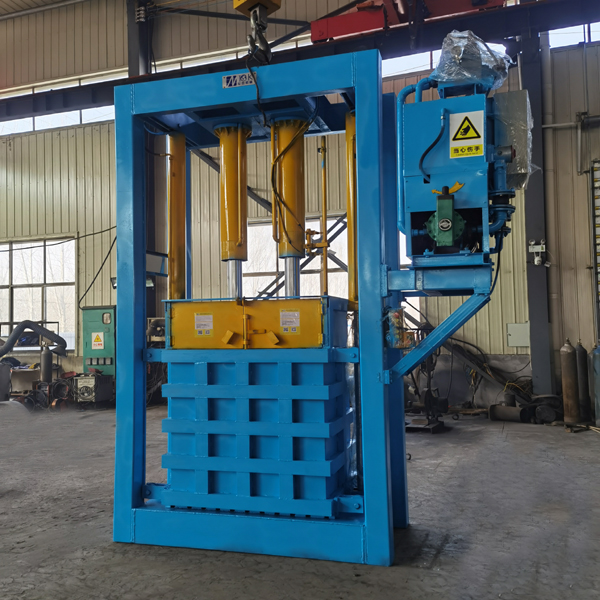

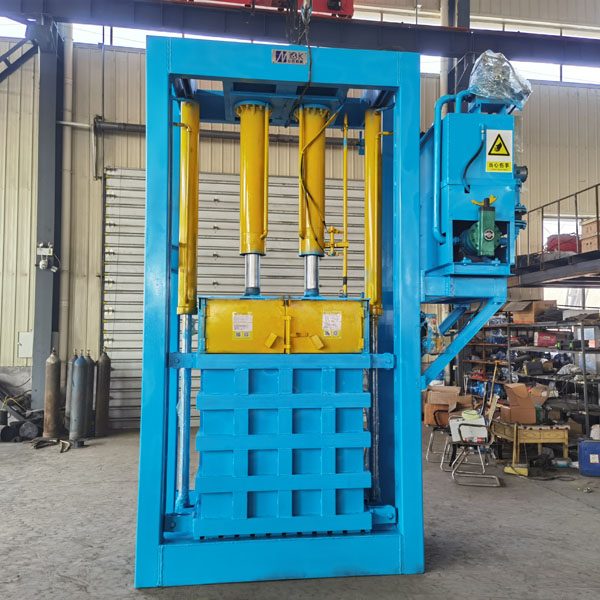

Product Images
