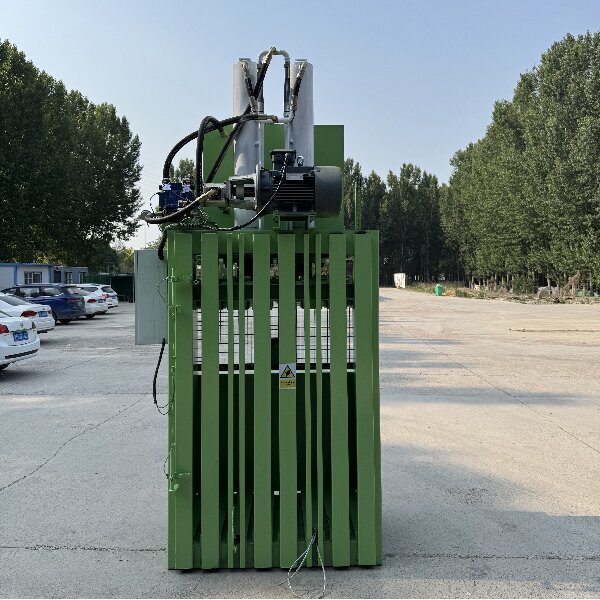

The NK1070T60 vertical cardboard baler machine from NICKBALER is a heavy-duty hydraulic press designed for efficient compaction of cardboard, OCC, and similar recyclables. With a powerful 60-ton pressing force and a feed opening of 1100x500mm, this baler processes 5-8 bales per hour, making it an ideal solution for small to medium recycling facilities, warehouses, and manufacturing plants. Its carbon steel construction ensures durability and long service life, while the customizable voltage options (380V/50Hz standard) allow integration into diverse global power systems.
Key Selling Points
High Pressing Force: 60-ton hydraulic power delivers dense, manageable bales for efficient storage and transport.
Rapid Output: Achieve 5-8 bales per hour, boosting your recycling throughput.
Large Feed Opening: 1100x500 mm opening accepts bulky cardboard boxes with ease.
Customizable Voltage: Standard 380V/50Hz, but other voltages available to match your local power supply.
Robust Construction: Built with carbon steel for long-term reliability in demanding environments.
Space-Saving Vertical Design: Vertical orientation minimizes floor footprint, ideal for compact facilities.
Technical Specifications
| Parameter | Value |
|---|
| Model | NK1070T60 |
| Hydraulic Power | 60 Ton |
| Bale Size (L*W*H) mm | 1100*700*(500-900) |
| Feed Opening Size (L*H) mm | 1100*500 |
| Chamber Size (L*W*H) mm | 1100*700*1450 |
| Capability | 5-8 bale/H |
| Voltage (can be customized) | 380V/50HZ |
| Power (KW) | 15KW/20HP |
| Machine Size (L*W*H) mm | 1600*1100*3200 |
| Machine Weight (T) | 2.2 T |
Models and Options
- NK1070T60 (Standard model as described)
- Other models with different capacities may be available; contact us for more information.
Materials and Structure
- Main frame: Carbon steel for strength and durability
- Hydraulic system: Designed for high pressure and reliability
- Baling chamber: Sized to accommodate large cardboard volumes
Applications
- Food industry packaging waste
- Pharmaceutical packaging cardboard
- General packaging materials
- Chemical industry cartons
- Electronics packaging
- Metal scrap (light) compaction
- Waste treatment and recycling facilities
Customization
We offer customization options including voltage adaptation (e.g., 220V, 440V), bale size adjustments, and additional safety features to meet specific operational requirements. Please consult our sales team for detailed custom configurations.
FAQ
What is the MOQ for the NK1070T60?
The minimum order quantity is 2 units.
What are the available payment terms?
We offer 30%/70% payment terms (30% deposit, 70% before shipment).
Can the voltage be customized?
Yes, the standard voltage is 380V/50Hz, but we can customize to suit your local grid.
Does the machine come with CE certification?
Yes, the machine is compliant with CE standards and supports EU/EEA markets.
What is the delivery method?
We ship via FOB/CIF, depending on your preference.
Is there a pre-shipment test?
Yes, every machine undergoes a pre-shipment test to ensure quality.
What materials can this baler compress?
It is suitable for cardboard, cartons, and other recyclable materials like light metals and plastics.
How long is the warranty?
Warranty terms are not specified; please contact us for details.
