Automatic Bagging Machine for Continuous Industrial Baling

Name: "Automatic Bagging Machine for Continuous Industrial Baling"
Rating: 5 (618 reviews)

Quantity:

SKU: 8968414920

Model: NKB220

Product Details

Automatic Bagging Machine for Continuous Industrial Baling

Model NKB220 | PLC Controlled Cyclic Operation

This automatic bagging machine (Model NKB220) is engineered for continuous automatic operation, featuring PLC-controlled cycles designed for 24/7 industrial duty. It compacts and packages materials into dense bales with a capacity of 90 blocks per hour, making it an ideal solution for high-throughput environments. The machine operates with a working pressure of 21MPa and produces bales weighing 30-35 kg each.

Key Selling Points

Continuous automatic operation: The PLC-controlled cycle ensures seamless, hands-free operation, boosting productivity by 20% compared to semi-automatic systems.
High throughput: Achieves a capacity of 90 blocks per hour, ideal for large-scale production lines requiring consistent output.
Low energy and noise: Designed with low energy consumption and low noise features, reducing operational costs and meeting workplace noise regulations.
Robust construction: Built with carbon steel to withstand heavy-duty use, ensuring long-term reliability and minimal downtime.
Versatile integration: Easily integrates with conveyor lines, wire rope, and woven bags for a complete packaging solution.

Technical Specifications

Model	NKB220
Type	Block Making Machine
Pressure	200 Ton
Bale Size (LWH)	480480(220-350) mm
Working Pressure	21 MPa
Compress Time	22 s
Bale Capacity	90 blocks/h
Moisture Requirement	13% or under
Feed Opening Size (L*H)	700*480 mm
Bale Weight	30-35 kg/bag
Capacity	2.5-3 t/h
Voltage	200-480V/50Hz/3Phase
Power	40 HP
Machine Size (LWH)	426011001800 mm
Machine Weight	6 T

Models and Options

Available in the NKB220 model, with options for voltage selection (200-480V) and PLC program customization for specific cycle times. This model can be configured to match existing production line layouts.

Materials and Structure

Constructed with a heavy-duty carbon steel frame, the machine is built to endure continuous high-pressure operation. The hydraulic system is equipped with high-grade components for consistent performance, and the electrical system is fully PLC-controlled with safety interlocks.

Applications

Ideal for material compression and packaging projects in industries such as food, pharmaceuticals, chemicals, and recycling. Suitable for high-temperature working conditions and capable of 24/7 operation.

Customization

Customizable PLC programs for different bale sizes and compression cycles, voltage adjustments to meet local power standards, and integration options with existing material handling systems.

FAQ

Can this machine operate continuously?

Yes, it is designed for continuous automatic operation with PLC-controlled cycles, suitable for 24/7 industrial duty.

What is the bale weight produced?

Each bale weighs between 30-35 kg, depending on material density.

What are the voltage options?

The machine supports 200-480V, 50Hz, 3-phase power.

Does it come with safety features?

Yes, it includes safety interlocks and complies with CE standards (EN ISO12100:2010; EN60204-1:2018).

Can it handle high-temperature working conditions?

Yes, it is designed to operate in high-temperature environments as per our material compression and packaging project specifications.

Inquiry Information

Product Images

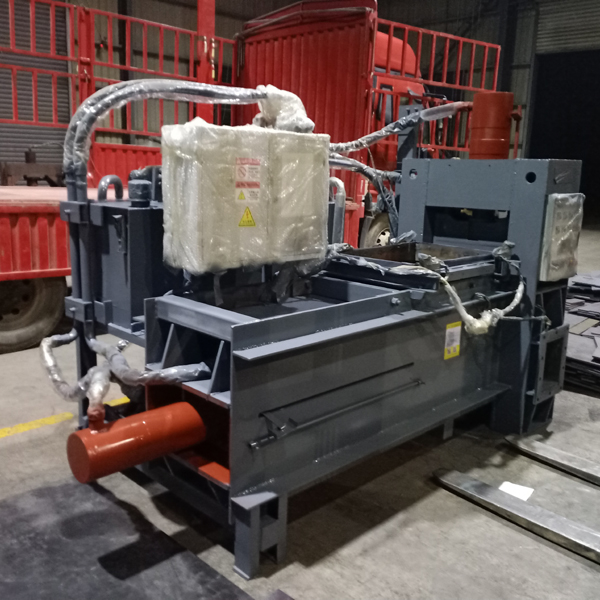

Press Bagging Machine NKB220 PLC control panel

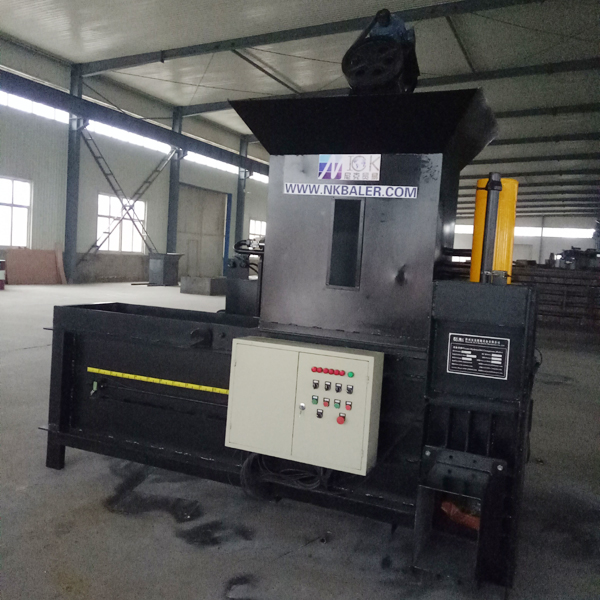

Press Bagging Machine NKB220 compression chamber

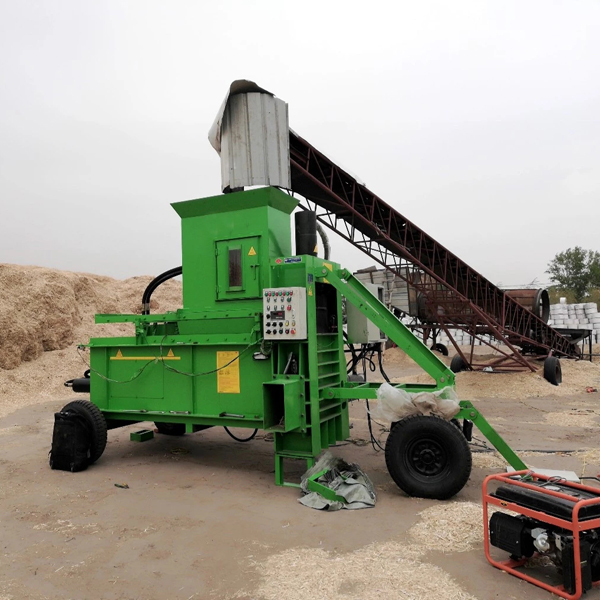

Press Bagging Machine NKB220 full machine view
