High Temperature Material Compression Bagging Machine

Name: "High Temperature Material Compression Bagging Machine"
Rating: 5 (661 reviews)

Quantity:

SKU: 155393170X

Model: NKB220

Product Details

High Temperature Material Compression Bagging Machine

Model NKB220 | Designed for Extreme Working Conditions

Engineered for demanding environments, this bagging machine (Model NKB220) is specifically designed to operate in high-temperature working conditions, making it ideal for industries such as waste treatment and metal recycling. It delivers a powerful 200-ton compression force at a working pressure of 21MPa, producing uniform bales with a capacity of 90 blocks per hour. The robust design ensures reliable performance even under continuous heavy-load operation.

Key Selling Points

High temperature tolerance: Built to operate effectively in high-temperature environments, ensuring consistent performance in extreme conditions.
Robust construction: Heavy-duty carbon steel frame and components withstand thermal stress and mechanical wear, extending equipment lifespan.
Efficient compression: 21MPa working pressure delivers dense, compact bales, maximizing storage and transport efficiency.
Low noise and energy: Designed with low noise and low energy consumption, reducing environmental impact and operational costs.
High productivity: Produces up to 90 blocks per hour, meeting high-volume production demands.

Technical Specifications

Model	NKB220
Type	Block Making Machine
Pressure	200 Ton
Bale Size (LWH)	480480(220-350) mm
Working Pressure	21 MPa
Compress Time	22 s
Bale Capacity	90 blocks/h
Moisture Requirement	13% or under
Feed Opening Size (L*H)	700*480 mm
Bale Weight	30-35 kg/bag
Capacity	2.5-3 t/h
Voltage	200-480V/50Hz/3Phase
Power	40 HP
Machine Size (LWH)	426011001800 mm
Machine Weight	6 T

Models and Options

The NKB220 model is available with adjustable bale size dimensions (220-350mm height) and can be customized for specific high-temperature applications. Options include thermal insulation for sensitive components.

Materials and Structure

All structural components are fabricated from high-grade carbon steel, treated to resist heat and corrosion. The hydraulic and electrical systems are sealed and protected to ensure reliable operation in harsh environments.

Applications

Particularly suited for waste treatment plants, metal recycling facilities, and other high-temperature processing industries. It compresses and packages materials such as metal scrap, plastic waste, and industrial by-products.

Customization

We offer thermal protection upgrades, modified hydraulic fluids for high-temperature operation, and special coating options. Custom voltage and PLC settings are also available.

FAQ

What is the maximum operating temperature?

The machine is designed for high-temperature environments as specified in our material compression and packaging project; specific limits depend on the production area and configuration.

Can it handle metal scraps?

Yes, it is suitable for metals and waste treatment applications.

Is maintenance difficult in high-temperature conditions?

Maintenance is straightforward due to the robust design and accessible components; periodic checks are recommended.

What safety features are included?

Safety interlocks and emergency stops are standard, and the machine complies with CE directives.

Does it support continuous operation?

Yes, it is designed for continuous duty under heavy loads.

Inquiry Information

For a tailored solution, contact our engineering team: Sales@nkbaler.com | Tel: +86 15021631102

Product Images

High temperature bagging machine NKB220 in operation

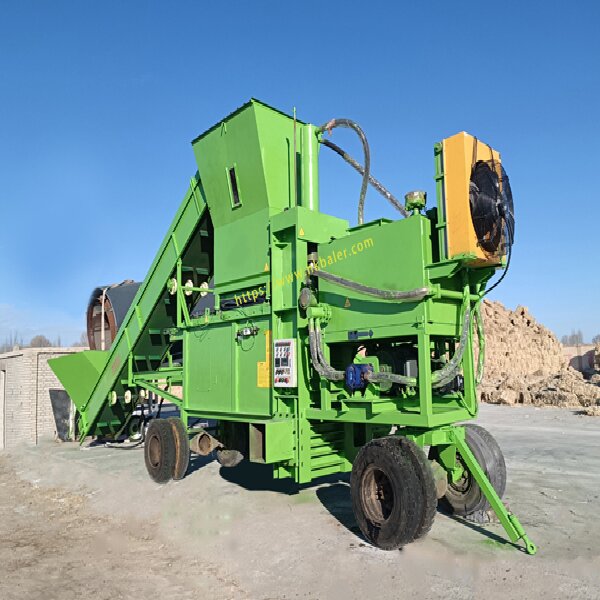

High temperature bagging machine NKB220 main body

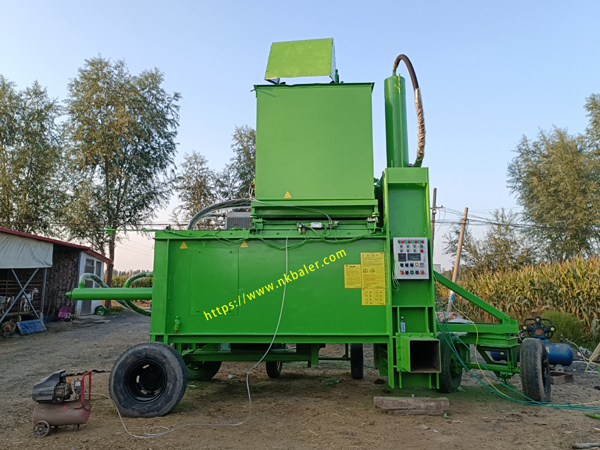

High temperature bagging machine NKB220 side view
