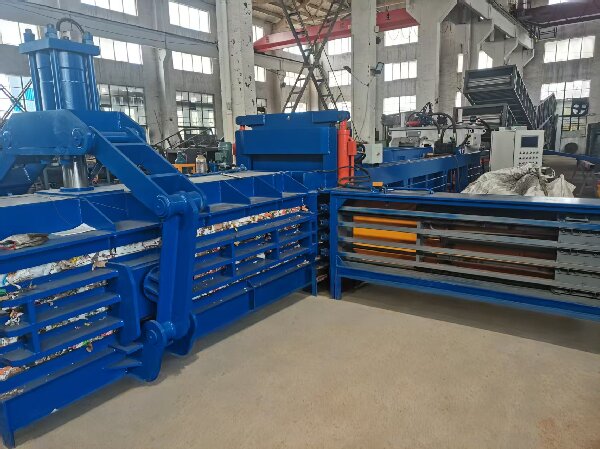

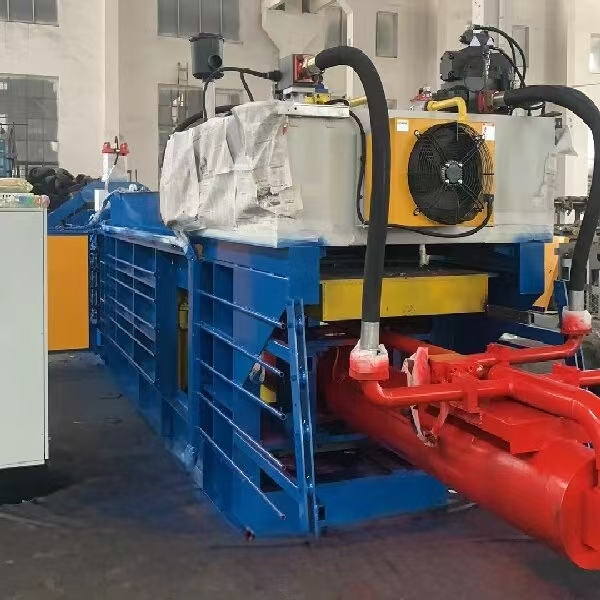

NKW100QT Fully Automatic Horizontal Hydraulic Baler for Waste Paper and Plastic
Product Summary
The NKW100QT is a fully automatic horizontal hydraulic baler designed for high-volume waste handling. It compresses materials such as waste paper and plastic into dense bales of 1100mm(W) x 850mm(H) x ~1200mm(L), achieving a material density of 400-500 kg/m³. With a feed opening of 1800mm x 1000mm and a main cylinder force of 100 tons, this baler handles 4-6 tons per hour, making it suitable for recycling stations, packaging plants, and waste treatment facilities.
Key Selling Points
High Efficiency: Produces 4-6 tons per hour with a 30kW main motor plus 7.5kW auxiliary, reducing operational time and cost.
Dense Bales: Bale density of 400-500 kg/m³ enhances transport and storage efficiency, lowering logistics costs.
Robust Construction: Heavy-duty carbon steel frame weighs 20 tons, ensuring stability and durability for continuous operation.
CE Certified: Meets EN ISO 12100:2010 and EN 60204-1:2018 standards, ensuring safety and compliance for EU/EEA markets.
Low Noise & Energy: Designed for low noise and low energy consumption, as confirmed by a recycling station case with 10-15 years stable operation.
Technical Specifications
Bale Size
1100mm (W) × 850mm (H) × ~1200mm (L)
Material Density
400-500 kg/m³
Feed Opening Size
1800mm × 1000mm
Main Motor Power
30kW + 7.5kW
Capacity
4-6 tons/hour
Main Cylinder Force
100 tons
Mainframe Weight
20 tons
Mainframe Size
About 13×2.3×2.9 m (L×W×H)
Conveyor Weight
About 5 tons
Conveyor Size
2000×12000 mm
Conveyor Motor
5.5kW
Cool Tower Motor
0.75kW (water pump) + 0.26kW (fan)
Working Pressure
21 MPa
Models and Options
This baler is available in fully automatic and semi-automatic control systems. Optional conveyor systems and bale tying methods (wire rope, woven bag) can be configured to match your material handling needs.
Materials and Structure
Constructed from heavy-duty carbon steel, the mainframe provides strength and longevity. The robust design is suitable for continuous industrial operation, as evidenced by the 20-ton mainframe weight and 10-15 year lifespan in field installations.
Applications
Ideal for waste paper, waste plastic, packaging materials, chemicals, metals, and more. Widely used in food, pharmaceutical, packaging, chemical, electronics, and recycling industries.
Customization
Customizable options include conveyor configurations, PLC control cycles, and additional safety features. Contact our team to discuss your specific requirements.
Case Study
A recycling station in Indonesia has been using this baler for waste plastic and paper baling for 10-15 years, with stable operation, low noise, and low energy consumption. This demonstrates long-term reliability in demanding environments.
Frequently Asked Questions
What is the bale density produced by this baler?
The baler achieves a density of 400-500 kg/m³, ensuring compact bales for efficient transport and storage.
What materials can this baler handle?
It is suitable for waste paper, plastic, packaging, and other recyclable materials.
What is the production capacity?
It processes 4-6 tons per hour, depending on material type and feeding.
Does it have any certifications?
Yes, it is CE certified and complies with EN ISO 12100:2010, EN 60204-1:2018.
What is the main motor power?
The main motor is 30kW with an additional 7.5kW auxiliary motor.
Can it operate continuously for long hours?
Yes, the heavy-duty design supports 24/7 industrial operation, as proven in field use.
What is the working pressure?
It operates at a working pressure of 21 MPa.
