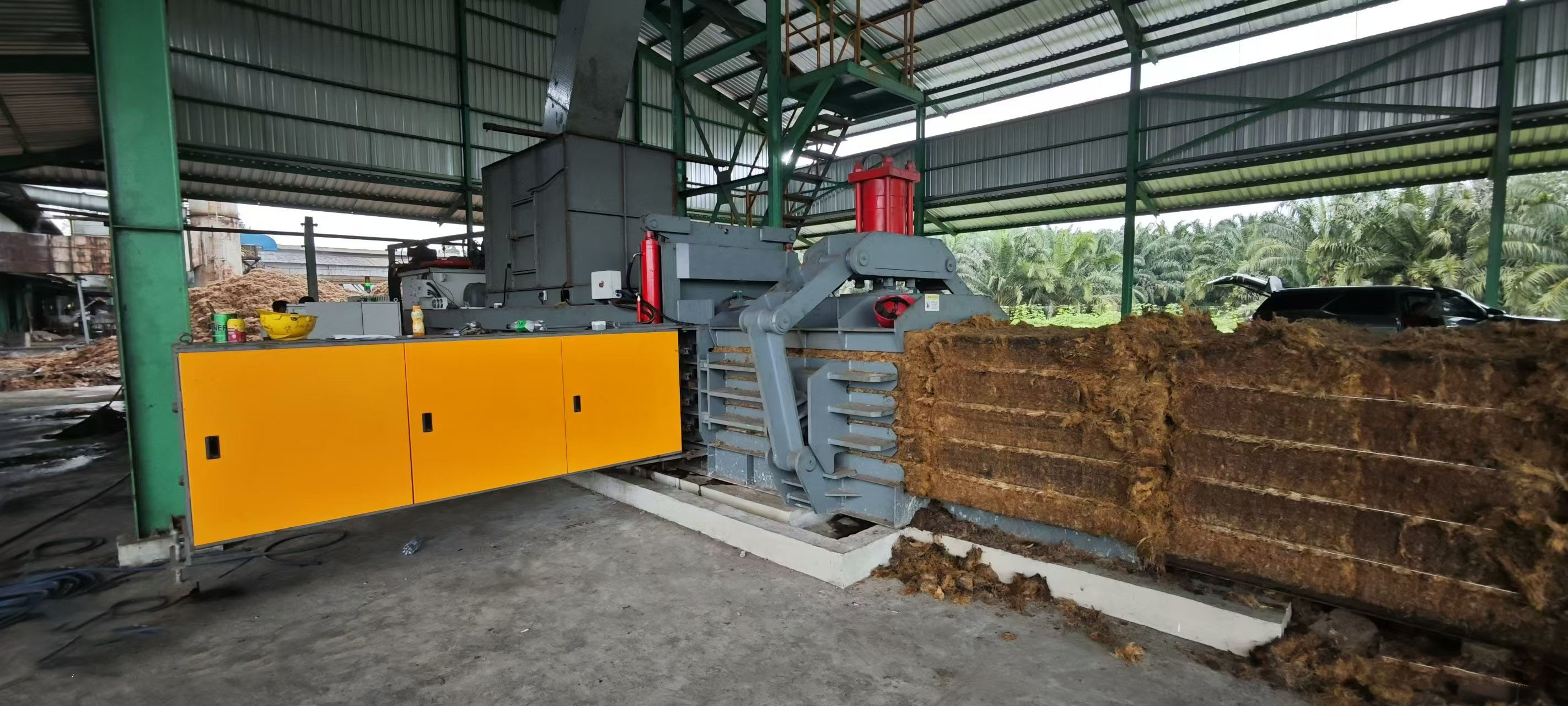

The semi-automatic version of the NKW160QT horizontal hydraulic baler offers the same powerful 160-ton compaction force and high-density bales but with simpler operator involvement. It is ideal for facilities where full automation is not required, reducing initial investment while maintaining efficiency.
Key Selling Points
Cost-effective automation: Semi-automatic operation reduces upfront cost and complexity, while still achieving high throughput.
Heavy-duty force: 160T main cylinder and 30.6MPa pressure produce dense bales that maximize transport efficiency.
Low noise and low energy: Designed for quieter operation and reduced power consumption, as confirmed in applications.
Versatile material handling: Accommodates various materials including plastic, paper, and general waste.
Proven reliability: Backed by a case study showing 10-15 years of stable operation.
Technical Specifications
Parameter
Value
Model
NKW160QT (semi-auto option)
Type
Semi-automatic horizontal hydraulic baler
Bale size (W x H x L)
1100mm x 1250mm x ~1600mm
Material density
500-600 kg/m³
Feed opening size
2000mm x 1100mm
Main motor power
45KW + 7.5KW
Capacity
12-15 tons/hour
Main cylinder force
160T
Mainframe weight
28 tons
Mainframe size (L x W x H)
About 13 x 4.3 x 5.8M
Conveyor weight
About 5 tons
Conveyor size
2000 x 12000MM
Conveyor motor
4KW
Cooling tower motor
0.75KW (water pump) + 0.26KW (fan)
Working pressure
30.6MPa
Models and Options
The NKW160QT platform supports both fully automatic and semi-automatic configurations. Conveyor lengths and feed openings can be adjusted to match your material types.
Materials and Structure
Constructed from carbon steel, the baler's mainframe and components are built for longevity and resistance to wear.
Applications
Ideal for recycling centers, waste paper, plastic, and packaging industries. It handles high-temperature working conditions and continuous 24/7 operation.
Customization
We offer customization of automation level, bale size, conveyor systems, and safety features. Send us your requirements for a tailored proposal.
Case Study
A recycling station in Indonesia successfully used this baler type for waste plastic and paper, achieving stable performance for over a decade with low noise and energy consumption.
Frequently Asked Questions
Q: What is the MOQ?
1 unit.
Q: What shipping terms are available?
FOB and CIF are both offered.
Q: Is there a pre-shipment test?
Yes, every machine is tested before shipment to ensure reliability.
Q: What are the payment terms?
Typically 40% T/T in advance, 60% before shipment.
Q: Can this machine operate continuously?
Designed for continuous industrial duty; specific conditions can be elaborated.
Q: Does it meet European safety standards?
Yes, it complies with EN ISO 12100:2010 and EN 60204-1:2018 standards.
