This semi-automatic horizontal hydraulic baler retains the powerful 200-ton main cylinder force and 30.5MPa working pressure of the fully automatic model, but offers a more economical solution by reducing automation complexity. It still processes 12-15 tons per hour, making it suitable for operations where manual loading is acceptable or where investment costs need to be minimized.
Key Selling Points
Cost-Effective: Lower initial investment due to semi-automatic design, suitable for budget-focused projects.
Powerful Compression: Same 200-ton force, producing bales of 650-700 kg/m³ density, maximizing shipping efficiency.
Proven Components: Utilizes same robust carbon steel structure and hydraulic system as the fully automatic model.
Flexible Operation: Can be operated with manual feeding, reducing complexity and maintenance.
Compliance: CE certified to EN ISO 12100:2010 and EN 60204-1:2018, adhering to EU safety standards.
Technical Specifications
Bale Size
1100mm (W) × 1100mm (H) × ~1800mm (L)
Material Density
650-700 kg/m³
Feed Opening Size
2400mm × 1100mm
Main Motor Power
45KW + 11kW
Capacity
12-15 tons/hour
Main Cylinder Force
200 tons
Working Pressure
30.5 MPa
Mainframe Weight
34 tons
Mainframe Size (L×W×H)
About 11 × 4.3 × 5.8 meters
Conveyor Weight
About 7 tons
Conveyor Size
2000 × 14000 mm
Conveyor Motor
7.5 kW
Models and Options
The semi-automatic model can be configured with or without a conveyor system. For manual feeding, the conveyor may be omitted, reducing overall footprint and cost. Optional bale tying mechanisms are available.
Materials and Structure
Same robust carbon steel construction as the fully automatic model, designed to withstand heavy industrial use. The structure is identical, ensuring durability and stability.
Applications
Suitable for small to medium recycling centers, agricultural waste processing, and manufacturing facilities where automation level can be lower. Works well for paper, plastics, and non-ferrous metals.
Customization
We can modify the automation level, add safety guards, or adjust bale dimensions. Semi-automatic control systems can be customized for specific operational sequences.
FAQ
What is the difference between semi and fully automatic?
Semi-automatic requires manual loading and operation initiation, while fully automatic runs continuously with PLC control. The semi-auto version has a lower cost but may require more labor.
Can this baler handle cardboard?
Yes, it is effective for cardboard, paper, plastics, and similar materials within the feed size limit.
What safety features are included?
The machine meets CE safety requirements, including guards, emergency stops, and pressure relief valves. Additional features can be added.
Is a conveyor necessary?
Not for manual feeding, but a conveyor streamlines material handling. We offer it as an optional accessory.
What is the warranty period?
Standard warranty is 12 months. Extended warranty options are available.
Can we visit the factory?
Yes, we welcome factory inspections. Contact sales to schedule a visit.
How long does installation take?
Installation typically takes 5-7 days depending on site conditions and crew size.
Inquiry Information
Provide your material type, required capacity, and whether you need a conveyor. Our team will offer a quotation with suitable options.

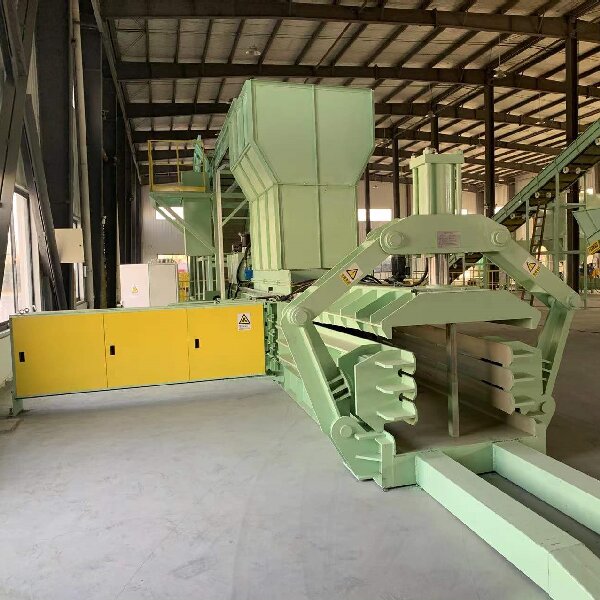

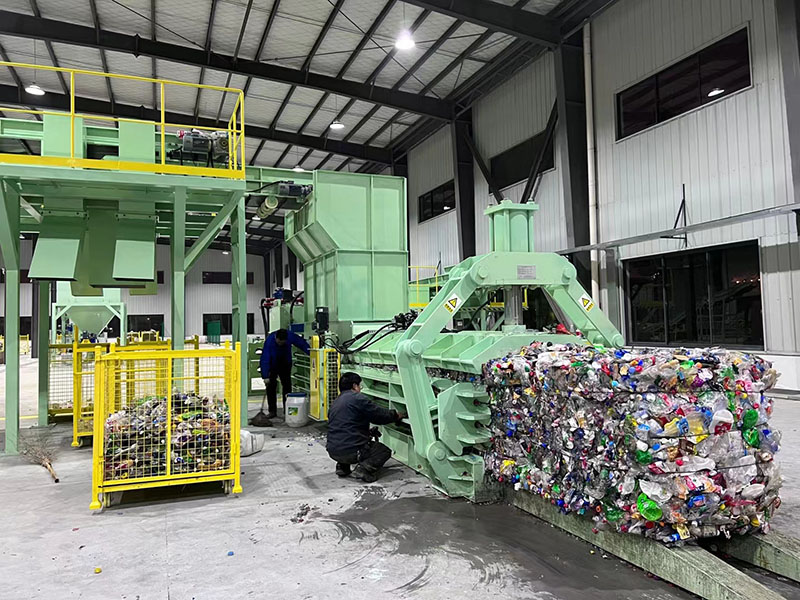

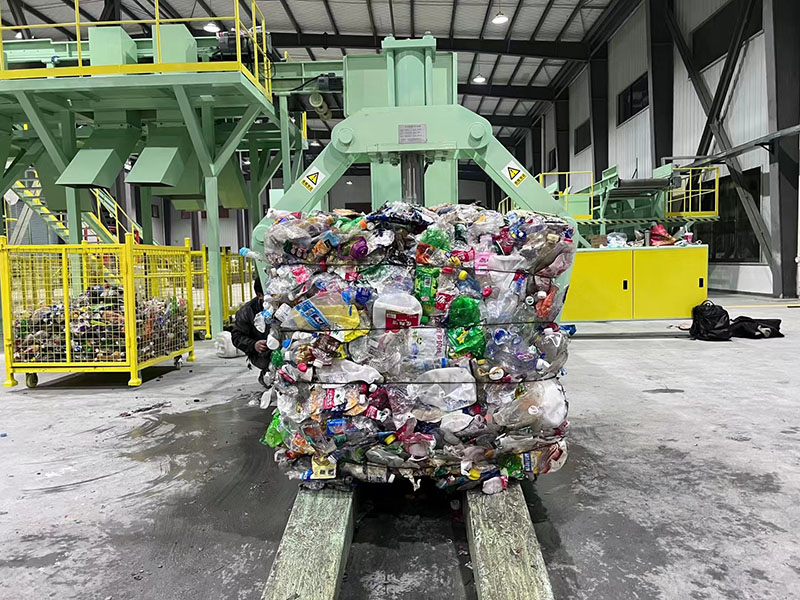

With waste paper balesFront and side anglesCompact view
